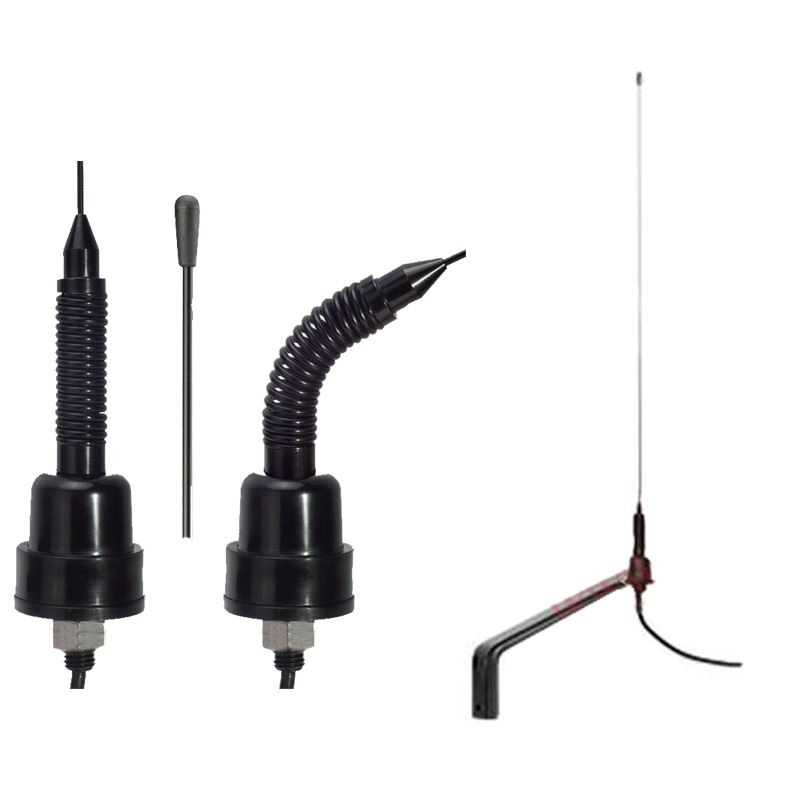

This antenna has been designed for vehicles that have no suitable ground plane. This is the perfect antenna for vehicles with fibre glass roofs or motor bikes with limited surface area. Package includes antenna bracket for easy install and BNC plug.
Electrical Specifications:
Attenuation (dB/100m):
Formula: (K1 * √freq. (MHz)) + (K2 * freq. (MHz))
K1 (100m): 1.17049752
K2 (100m): 0.0015416
Capacitance: 83 pF/m
Impedance: 50 ohms
Recommended Frequency Range: DC to 11 GHz
Velocity of Propagation: 80%
Voltage Withstanding: 1000V RMS Maximum
Environmental:
RoHS Compliant: Yes
Temperature Range: -40°C to +85°C
Material:
Centre Conductor: Solid Copper
Dielectric: Physical Foam Polyethylene
Jacket: Black Polyethylene
Overall Braid: Tinned Copper
Mechanical Specifications:
Bending Radius (Flexing): 50mm
Bending Radius (Static): 15mm
Centre Conductor Diameter: 0.94mm
Dielectric Diameter: 2.79mm
Jacket Diameter: 4.95mm
Outer Conductor 1 Diameter: 2.95mm
|
Bandwidth |
15 MHz at 1.5:1 VSWR |
|
Gain |
Unity |
|
Impedance |
50 Ohms |
|
Polarization |
Vertical |
|
Power handling |
25 Watts |
|
Materials |
Stainless steel whip |
|
Weight |
250g |
