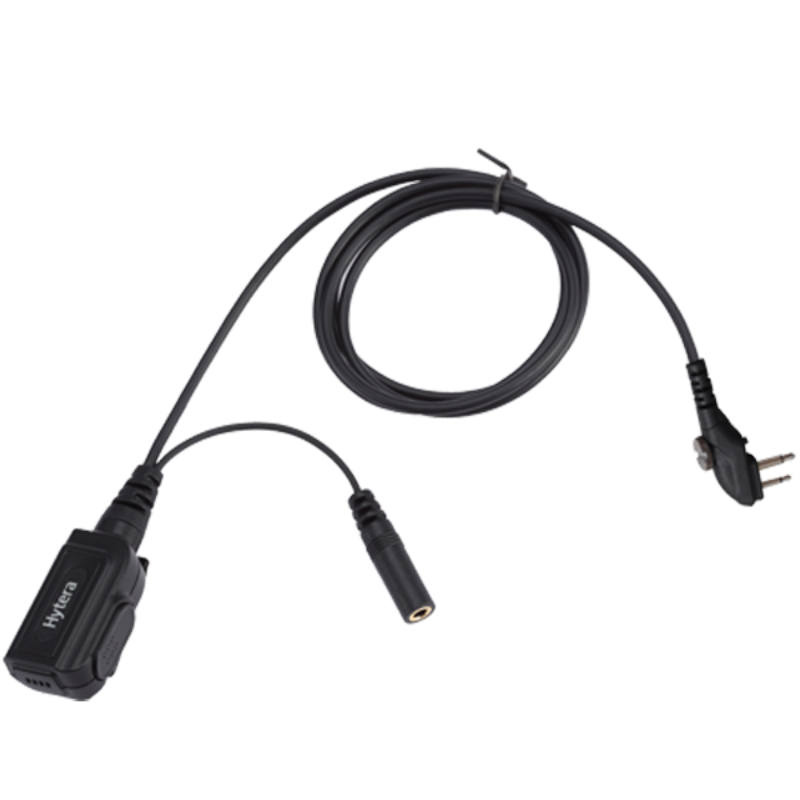

Hytera ACM-01 Inline PTT and Microphone Waterproof Cable

The Hytera ACM-01 is a versatile and durable control microphone designed to enhance communication with a wide array of Hytera radios. It features a robust black design, weighing approximately 35g, and is equipped with a PTT (Push-To-Talk) key capable of enduring over 100,000 cycles. The ACM-01 supports VOX functionality for hands-free operation in conjunction with the radio's VOX feature, although it does not include an emergency key.

Key Features:

• Weight: About 35g
• Colour: Black
• PTT Key: Available
• PTT Cycles: ≥ 100,000
• VOX: YES
• Emergency Key: None
• Radio Connector: Double jack plug
• Earpiece Connector: 3.5 mm jack socket
• Microphone Sensitivity: -45 ±3 dB @1kHz 3.0V 2.2K, 0dB=1V/Pa
• Microphone Impedance: ≤ 2.2 kΩ @ 1 kHz
• Operating Voltage: 1 - 10V DC
• Ingress Protection: IP54
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -40°C to 75°C

Compatible Devices:

• Earbuds:
  • ES-01
  • ES-02
  • EH-01
  • EH-02
• DMR:
  • BD505LF
  • BD505
  • BD615
  • PD405
  • PD415
  • PD485
  • PD505LF
  • PD505
  • PD565
• Analogue:
  • TC-610
