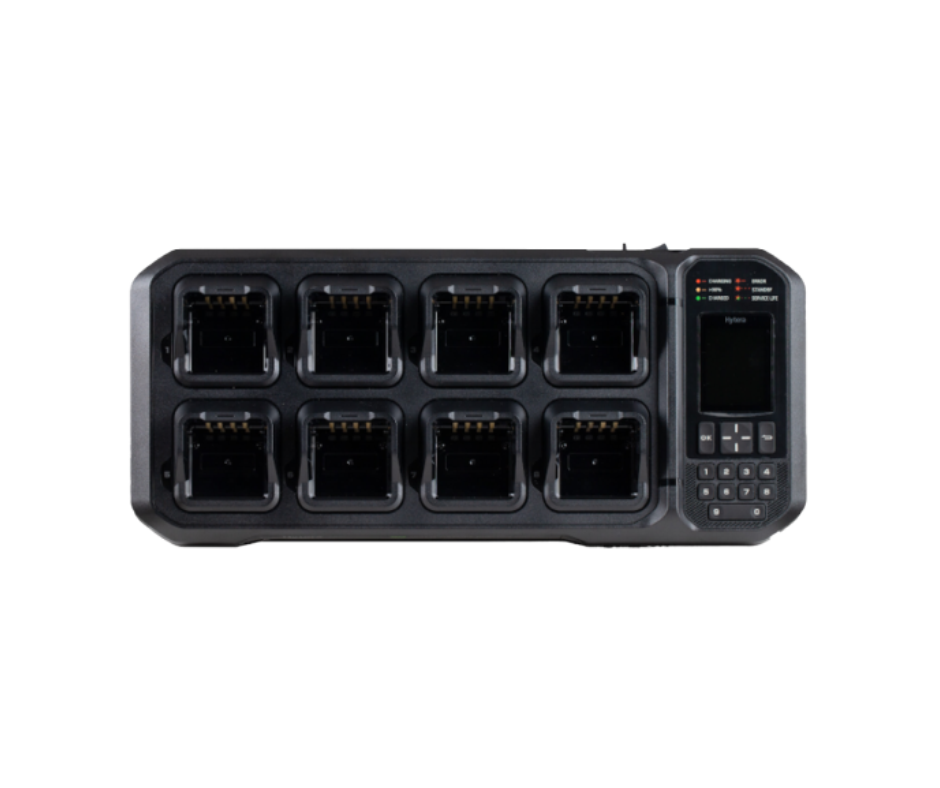

Hytera MCA16 HySEIS 8-Way Intelligent Radio Battery Charger & Analyser

The Hytera MCA16 HySEIS Enhanced 8-Way Multi-Unit Charger and Battery Analyser is an advanced charging and battery management solution designed for organisations operating fleets of Hytera two-way radios.

Featuring eight individual charging pockets, intelligent battery analysis and a built-in 2.8-inch display, the MCA16 provides a convenient way to charge, monitor and manage multiple radio batteries from one central location.

Supporting both Lithium-ion and Lithium-polymer batteries, the MCA16 is compatible with a wide range of Hytera radio models, including the popular HP505, HP565, HP605, HP685, HP705 and HP785, alongside selected BP, AP and PT Series radios.

Whether you're managing radios in a warehouse, manufacturing facility, hospital, security operation or large commercial site, the MCA16 helps keep your communication equipment organised and ready for use.

Key Features

• Genuine Hytera charging accessory
• Manufacturer product code MCA16
• HySEIS enhanced multi-unit charger
• Eight individual charging pockets
• Simultaneous charging of compatible radio batteries
• Maximum 2A charging current per pocket
• Integrated battery analysis functionality
• Built-in 2.8-inch display
• Supports Lithium-ion and Lithium-polymer batteries
• Compatible with selected Hytera AP, BP, HP and PT Series radios
• Suitable for professional radio fleet management
• Can operate as a standalone charger
• Supports compatible Hytera MDM SE battery management integration
• Compact desktop charging design
• Supplied with power adapter and AC power cable
• USB data cable included
• CE certified

Technical Specifications

Manufacturer: Hytera
Product Code: MCA16
Product Name: HySEIS Enhanced Multi-Unit Charger
Product Type: Intelligent Radio Battery Charger & Analyser
Charging Capacity: 8 Pockets
Maximum Charging Current: 2,000mA Per Pocket
Supported Battery Types: Lithium-ion / Lithium-polymer
Display Size: 2.8 Inches
Power Input: 12V DC / 15A
Power Adapter: PS15002
AC Power Cable: PWC03
Dimensions: 508 × 224.5 × 84mm
Weight: Approximately 1.96kg
Operating Temperature: 0°C to +45°C
Storage Temperature: -20°C to +60°C
Certification: CE
Installation Type: Desktop
Battery Management: Integrated Battery Analysis / Compatible MDM SE Integration

Compatible Hytera Radios

According to Hytera's European product specifications, the MCA16 supports compatible batteries for the following models:

Hytera AP Series

• AP585

Hytera BP Series

• BP515
• BP515 LF
• BP565

Hytera HP5 Series

• HP505
• HP565

Hytera HP6 Series

• HP605
• HP685

Hytera HP7 Series

• HP705
• HP785

Hytera TETRA Series

• PT590

Important: Charging compatibility depends on the battery type and charging-pocket configuration. Confirm compatibility for your exact radio and battery before ordering.

What's Included

• 1 × Hytera MCA16 8-Way Intelligent Charger & Battery Analyser
• 1 × Hytera PS15002 Power Adapter
• 1 × Hytera PWC03 AC Power Cable
• 1 × USB Data Cable
• 1 × Documentation Kit

Please Note: Two-way radios and batteries are not included. Computer-based battery management software and any applicable licences are supplied separately.
