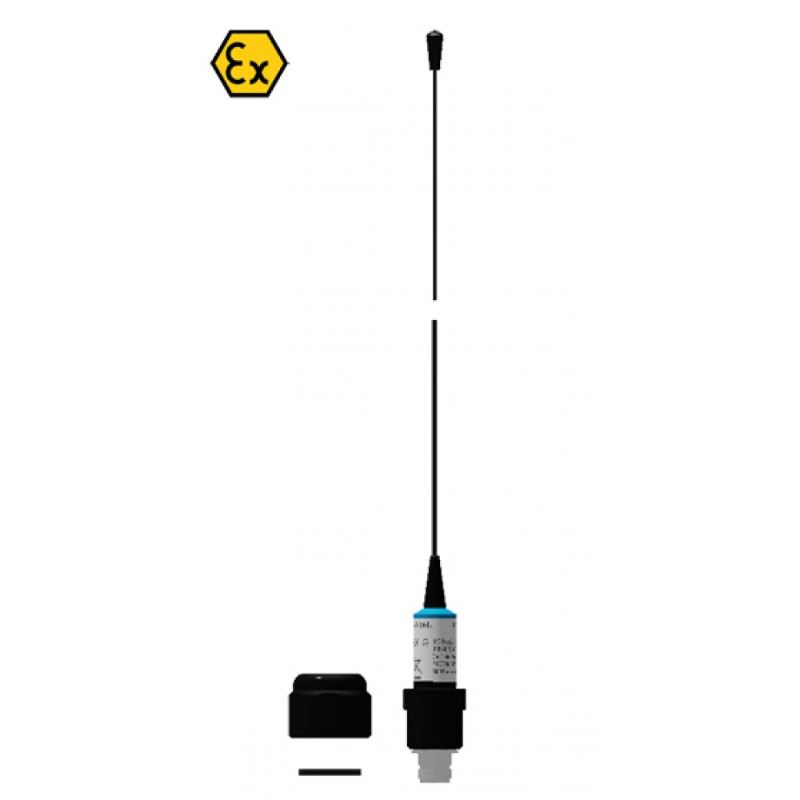

MA160-EX ATEX Certified End-Fed Dipole Marine Antenna

In Stock
£120.00 (£144.00 Inc Tax)
Price Check Price Checked
(1 Votes)

Brand Code: MA 160-EX

Key Features

  • ATEX Certified For Hazardous Locations
  • IP66
  • Survival Wind Speed - 200 km/h
  • Atex Marking - II 3G Ex nA IIC T6
  • Suitable For Use In Gas Groups IIA, IIB and IIC in Zone 2
  • International Maritime VHF Band

Add To Cart

Please correct the errors and try again.
:
*

Procom

Delivery Information

Free UK delivery available on orders over £100.00.
Orders to be placed by 14:00pm for next day delivery*.
Next day delivery is a working day delivery and does not include Saturday and Sunday.
Tracking information will be emailed once your parcel has been collected.
For further information and information on worldwide shipments, please click here.

Payment Options

Credit / Debit Card
We accept payment during checkout by debit or credit card using our secure Sage Pay payment system. Alternatively we can process payments over the phone using a secure World Pay terminal.

PayPal
We also accept payment by PayPal, this can be completed on checkout using the PayPal symbol.

Cheque
Payment by cheque is accepted. Please contact us prior to sending this if you wish to use this method.
Contact Form




Product Description

 The MA 160-EX is a 0 dBd ATEX certified end-fed dipole that operates on the International Maritime VHF band in hazardous environments.

MA 160-EX Product Brochure

EU Declaration of Conformity

Features

  •  0 dBd, Vertically Polarized, Omnidirectional Marine and Base Station Antenna
  • Models within 154-162.025 MHz
  • Black Chromed Stainless Steel Whip
  • Suitable For Use In Gas Groups IIA, IIB and IIC in Zone 2
  • Can Be Mounted On Threaded 1" Water Pipe Using Supplied 1" Revolving Nut
  • All Metal Parts Are DC Grounded.
  • Does Not Require Loading Cables or Ground Plane

Specifications

  • Frequency - Models within 154 - 162.025 MHz
  • Polarisation - Vertical
  • Pattern Type - Omnidirectional
  • 3 dB Beamwidth, H-Plane - Omnidirectional
  • Impedance - 50Ω
  • Gain - 0 dBd (2.2 dBi)
  • SWR - < 2.0:1
  • Bandwidth - 6 - 6.525 MHz
  • Connector - N-Female
  • Colour - Black
  • Wind Load - 4.6 N (160KM/H)
  • Height - 940mm
  • Weight - 0.22kg
  • ATEX Marking - ii 3G EX nA IIC T6
  • Operating Temperature Range - -30°C to +60°C
  • IP66 Rated
  • Survival Wind Speed - 200 Km/h



Questions And Answers
Question: What is the cable length attached & the conductor size
Answer: The cable would need to be purchased separately, as there is no cable supplied with this antenna. Can you confirm the length of cable and plugs you would require to work alongside this antenna?
By Lewis Smith - 06/03/2021
