Product Description

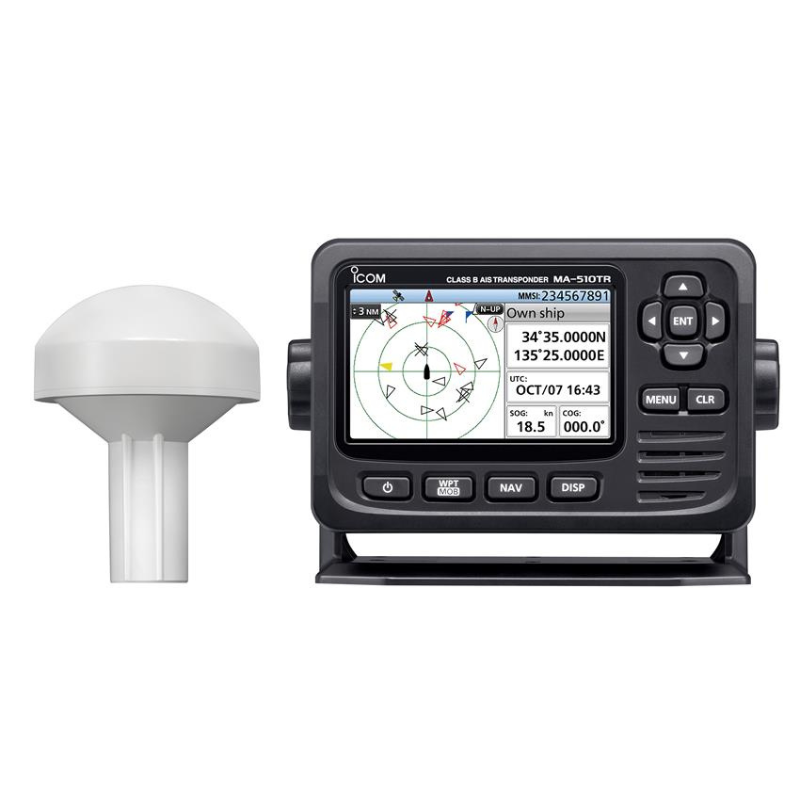

The Icom MA-510TR is a Class B AIS transponder in a compact, stand-alone unit with an easy-view display and a host of advanced features that assist navigation and safety.

  • 4.3-inch Color TFT Display: Wide viewing angle, clear visibility in direct sunlight or at night; displays vessels with red and yellow color-coding for danger / safety assessment.
  • AIS Target Tracking: Displays all AIS-equipped vessels; highlights those within 6 nautical miles or 60 minutes from CPA as "Danger", and shows pre-set 'Friends'. Details are accessed by selecting a target and pressing [ENT].
  • Simplified navigation: Guides you to a specified waypoint or AIS target. You can assign a maximum of 100 favourite locations or points of interest.
  • Collision Alarm Function: Alerts through visual and audible signals when potential collisions are detected, enhancing situational awareness.
  • Silent Mode Feature: Allows for security and privacy by turning off AIS transmission, while still receiving other vessels' AIS data.
  • Man Overboard (MOB) Navigation: Quickly marks MOB location for efficient rescue operations.
  • Digital Selective Calling (DSC): Supports individual DSC calls when integrated with compatible Icom VHF radios.
  • NMEA 2000 and NMEA 0183 Connectivity: Plug and play connectivity for integration with external navigation devices (transceiver, plotter device, marine radar or GPS receiver).
  • USB Connectivity: Allows for AIS data output to third-party applications via USB.
  • Supplied GPS Antenna: Includes a 66 channel GPS receiver with SBAS function for enhanced positioning accuracy.

Key Features

  • Standalone AIS Transponder
  • 4.3-Inch-Wide Viewing Angle Colour TFT Display
  • AIS Target List and Details
  • Simplified Navigation Function
  • Navigation to MOB Waypoint
  • Individual DSC Call
  • Collision Alarm Function
  • Silent Mode for Security and Privacy
  • NMEA 2000 & NMEA 0183 Connectivity
  • USB Connectivity
  • Supplied GPS Antenna
  • Compatible with Both 12 V and 24 V Power Resources
  • Multi-Lingual User Interface (English, French, Indonesian, Spanish, Vietnamese)
  • Anchor Watch Function Sounds an Alarm When Your Vessel is Drifting When Anchored
  • IPX7 Waterproof Protection (Up To 1m Depth of Water for 30 Minutes; Expect Connectors)
