Key Features

  • 32 Channels
  • IP67 Rated Ingress Protection
  • Certified To The Highest ATEX / IECEx Protection
  • Integrated GPS
  • Man Down
  • Lone Worker
  • Capacity Plus and Linked Capacity Plus Ready
  • Emergency Button

Product Description

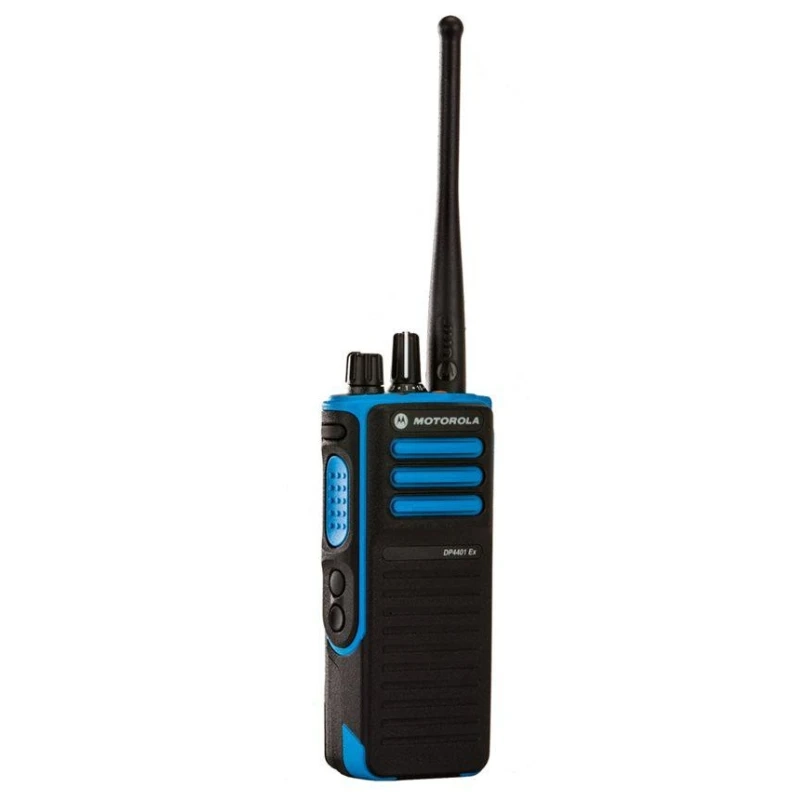

The Motorola DP4401 Ex is an ATEX-certified handheld radio in the Mototrbo range, featuring class-leading ATEX specifications for exceptional communication in dangerous working environments. This rugged two way radio is safe and effective in environments containing dust, potentially explosive gases and extreme operating temperatures ranging from -20ºC to +55ºC.

The Motorola DP4401 Ex also has many features to promote the safety of workers in industries such as oil, gas, mining, or chemical refineries. We explain some of these in more detail below.

Configure your DP4401 Ex to select UHF or VHF, the antenna of your choice and a charger, if required.

ATEX specifications

  • Gas rating
    • ATEX: Class II 2G Ex ib
    • IIC T4 Gb
    • IECEx: Ex ib IIC T4 Gb
  • Dust rating
    • ATEX: Class II 2D Ex ib
    • IIIC T130 °C Db
    • IECEx: Ex ib IIIC
    • T130°C Db
  • Mining rating
    • ATEX: Class I M2 Ex
    • ib I Mb
    • IECEx: Ex ib I Mb



As expected for a  Motorola radio in this class, the DP4401Ex ATEX is IP67 rated for dust and water ingress. In the harshest working environments, your radio will be dust-proof and can be submersed in up to one metre of water for up to thirty minutes with no ill effects.

Usability and safety focus

The radio is easy to use, even with gloves on, having an ergonomic design, an intuitive user interface and programmable buttons.

The DP4401Ex ATEX is packed with features to keep workers safe and connected, wherever they are:

Man Down

The Man Down feature is a potentially life-saving feature on the Motorola DP4401 Ex that uses an accelerometer to detect a worker's movements and vertical position. If the radio user suffers a fall, an alarm is triggered to a response group with the worker's name or radio ID, allowing them to respond appropriately.

Lone Worker

The Lone Worker function is an additional feature for team members working on their own in potentially dangerous situations. The worker is reminded to press the Push-to-Talk button at set intervals to check-in and assure supervisors that they are OK. An alarm is generated if the worker does not push the button in the pre-defined time period.

Emergency button

If an incident occurs, a radio user can press the emergency button on their radio to trigger an alarm back to the dispatch office. The alarm can be automatically forwarded as a text message or email. The supervisor is able to pinpoint the worker's exact location and take the appropriate action.

Integrated GPS

Global Positioning System (GPS) uses satellites to triangulate a radio user's exact position and transmit that back to a repeater or base station. The user can then be located quickly and easily, improving response times in an emergency and promoting efficiency in your mobile workforce. Integrated GPS is a standard feature of the Motorola DP4401 Ex. Find out more about Motorola's integrated GPS capability

Transmit Interrupt

Transmit Interrupt is a feature on the DP4401 Ex that allows high priority transmissions to cut across normal priority calls, clearing the channel for important announcements when a message has to get through immediately. It can also be used to take back control of a transmission when a mistake has been made, or to refocus or re-task your team's efforts.

A longer list of key features is included in the list below.

With 32 channels, calls between groups or individuals makes communication easy, with the radio available with either UHF or VHF frequency bands. Three programmable buttons help you carry out oft-repeated functions quickly and easily. Audio quality is best-in-class, with a front-facing speaker and loud audio that automatically adjusts the radio volume depending on the noise level around you.

The DP4401Ex ATEX also benefits from excellent battery life - you can expect 19 hours battery life in digital mode, or 16 hours in analogue mode.

An even higher spec version of the DP4401Ex ATEX is available in the form of the Motorola DP4801Ex ATEX, a radio that includes LCD display, full keypad and up to 1,000 channels.

Motorola DP4401 EX accessories

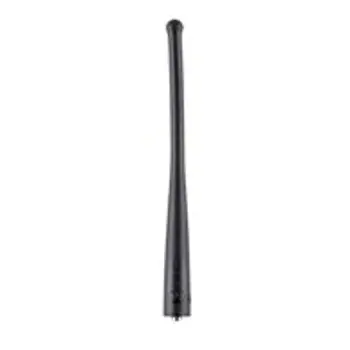

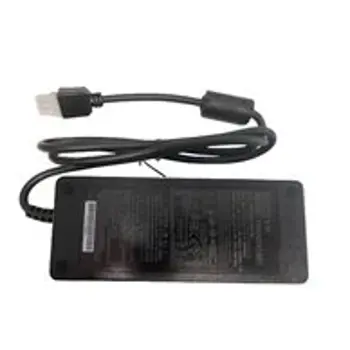

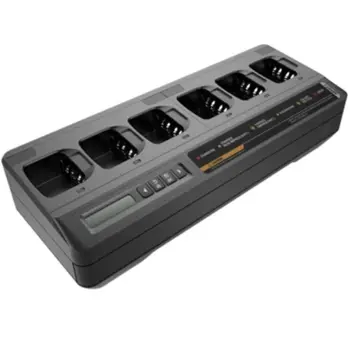

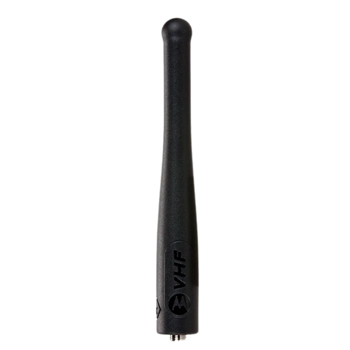

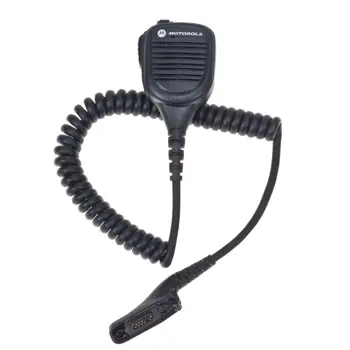

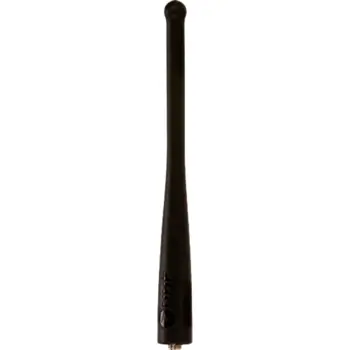

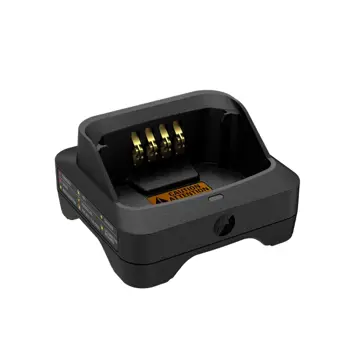

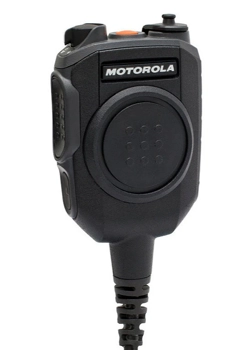

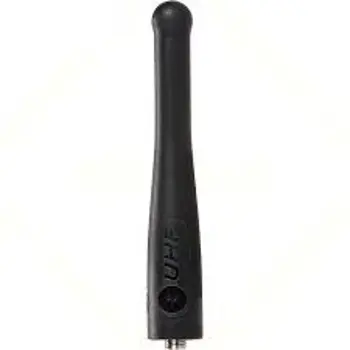

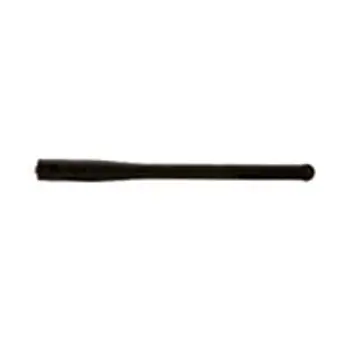

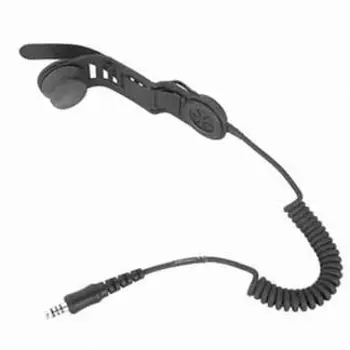

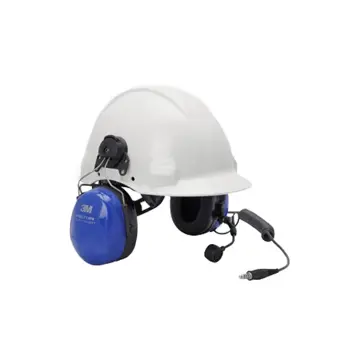

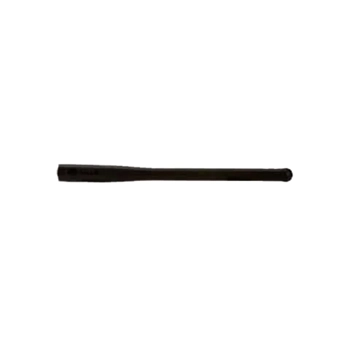

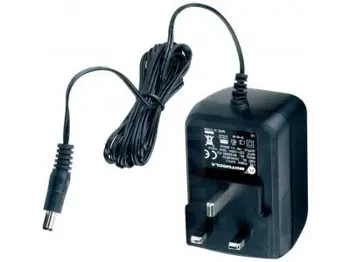

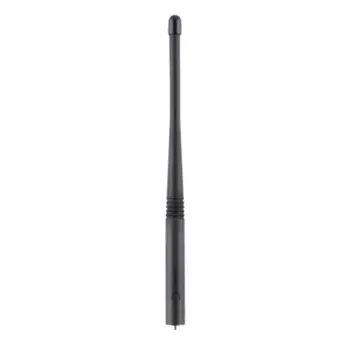

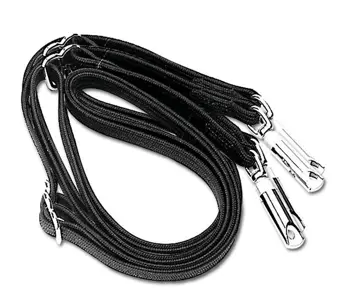

View related products below to shop for a huge range of accessories for the DP4400 Ex: Chargers, ATEX batteries and antennas, carry cases, ATEX audio and PTT adaptors, earpieces and ATEX headsets and microphones.

For more information, read the full Motorola DP4000 Series ATEX Brochure

Ofcom Licensing

When you buy Motorola's DP4401Ex  handheld radio, RadioTrader can help you with any Ofcom licensing requirements, from advice about the type of licence will best meet your needs, to helping with your licence application. Find out more information.

Key Features

  • 32 Channels
  • IP67 rating for ingress protection
  • Certified to the highest ingress protection available under ATEX/IECEx test conditions -IP64)
  • Large push to talk (PTT) button
  • 3 Programmable buttons to improve the ease-of-use and also increase efficiency
  • Digital phone patch capability
  • Emergency button for critical incidents
  •  Privacy Features
  • VOX Capability
  • Transmit Interrupt
  • Man down
  • Lone worker
  • Analogue mode compatible
  • 5 Tone signalling
  • Integrated GPS
  • Over the air programming
  • Intelligent audio which allows the volume of the radio to automatically adjust to counter background noise
  • Direct mode (including dual capacity direct mode) / repeater mode
  • IP Site Connect
  • Capacity Plus (single site trunking) / Linked Capacity Plus (Multi Site Trunking)

Package includes

  • Motorola DP4401 Ex Atex Handheld Two-Way Radio
  • IMPRES 2075Mah Li-Ion Atex CE Battery
  • Antenna
  • Dust Cover

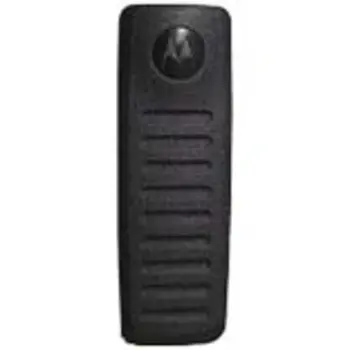

  • 2.5'' Belt Clip

Why Choose RadioTrader

Platinum Partner

Motorola Platinum Dealer - RadioTrader is pleased to be a Platinum Channel Partner with Motorola Solutions. This is the highest channel partner certification available and recognises our expertise of Motorola Solutions products and applications. This enables us to offer our most competitive pricing and expert technical support for your Motorola DP4401EX digital handheld two-way radios. Find out more about our Motorola Platinum Award.

Price Match Promise On The Motorola DP4401EX Digital Handheld Two-Way Radio - We strive to offer the most competitive pricing on the Motorola DP4401EX and are currently running a Price Match Promise on this model. In order to uphold our Price Match Promise and not be beaten on price, we actively monitor the prices offered by our competitors daily. More Info.

Experts in Export On The Motorola DP4401EX Handheld Two-Way Radio Two Way Radio - We offer a full worldwide export service which includes specialist shipping and dealing with customs to make sure your Motorola DP4401EX handheld two-way radio arrives when required. If you are based in Europe, Africa, Asia, North America, South America, Oceania or even Antarctica then we have you covered. A typical export from RadioTrader is sent DAP (Delivered At Place) however we also ship the DP4401EX using methods such as EX Works and FOB (Free On Board). All our shipments are fully insured for goods in transit. RadioTrader also issues commercial invoices for shipments outside of Europe and ensure all HS tariff codes are correctly used, reducing customs delays. More Info.

Ofcom Licencing

When purchasing your Motorola digital DP4400e handheld two-way radio from us, RadioTrader can help with licencing, assisting with decisions such as which licence is most appropriate for your needs. We can also make the application on your behalf. Find out more about Ofcom licences and how we can help.

Delivery

Free UK delivery available on orders over £200.00.
Orders to be placed by 14:00pm for next day delivery*.
Next day delivery is a working day delivery and does not include Saturday and Sunday.
Tracking information will be emailed once your parcel has been collected.
For further information and information on worldwide shipments, please click here.

Payment Options

Credit / Debit Card
We accept payment during checkout by debit or credit card using our secure Sage Pay payment system. Alternatively we can process payments over the phone using a secure World Pay terminal.

Bank Transfer
Please check out using the BACS payment option and this will generate an invoice including our bank details. Please send the transfer stating the order ID.

Cheque
Payment by cheque is accepted. Please contact us prior to sending this if you wish to use this method.
Contact Form



Questions And Answers
Question: hi there....i have Motorola 4401Ex UHF with 16 channel and I want to buy 5 more pieces with same UHF frequency and channel. how do check the frequency of the one I have.
Answer:

Thank you for the question.

You can find out the frequency of your radios by either asking the distributor that sold the radios to you, or you can send in one of your radios to us, and we can determine the frequency it is working on. Afterward, we can program the other five to match it and send them all over to you.

By Sam F - 25/03/2021
Question: Are all the radios in the Motorola range compatible with each other? Allowing a higher spec radio to be used where required and other basic spec radios used across the business?
Answer:

Thanks for the question.

Yes all the digital Motorola range can be used together on the same frequency.

By Sam F - 02/04/2021
